KEY FEATURES
- PASSIVE 3-WAY BI-AMP ELEMENT
- B&C COAXIAL MHF COMPRESSION DRIVER
- B&C DUAL 8″ WOOFERS
- COPPER SHORTING CAP (LF)
- NEODYMIUM INSIDE SLUG MAGNET (LF)
- PHASE PLUGS (LF)
- TIME COHERENT COAXIAL (MHF)
- EVO-FLOW WAVEGUIDE (MHF)
DESCRIPTION
XLA-308 is a passive 3-way Bi-amped element. It contains dual 8″ Low frequency neodymium drivers with a centrally mounted Mid/Hi coaxial driver…….. coupled to our EVO-FLOW waveguide.
SPECIFICATIONS
| DESIGN | Line Array Element |
| SYSTEM TYPE | Passive 3-way Bi-ampflied |
| CONFIGURATION | Three-way |
| FREQUENCY RESPONSE (+/-3 DB) | 63 Hz – 20 KHz |
| FREQUENCY RANGE (- 10 DB) | 48 Hz – 25 KHz |
| SENSITIVITY 2.83 V/1 M | 112 dB |
| CALCULATED MAXIMUM SPL @ 1 M | 140 dB |
| SYSTEM PEAK SPL | 146 dB |
| SYSTEM RATED IMPEDANCE | LF: 8 Ω – MHF: 8 Ω |
LOW FREQUENCY TRANSDUCER | |
| SIZE | 2 x 8″ |
| VOICE COIL SIZE | 65 mm / 2.5″ coil |
| LF FRAME MATERIAL | Cast Aluminium |
MID-HIGH FREQUENCY TRANSDUCER | |
| MF DRIVER TYPE | Compression Driver (Coaxial) |
| HF DRIVER TYPE | Compression Driver (Coaxial) |
| MF VOICE COIL SIZE (MM / INCHES) | 76 / 3″ |
| HF VOICE COIL SIZE (MM / INCHES) | 51 / 2″ |
| EXIT SIZE (MM / INCHES) | 36 / 1.4″ |
| DIAPHRAGM MATERIAL | HT Polymer |
| WAVEGUIDE TYPE | EVO-FLOW |
| NOMINAL COVERAGE (H X V) | 110 H x 10 V |
| SPECIAL FEATURES | Copper Shorting cap (LF) |
Neodymium inside slug magnet (LF) | |
Phase Plugs (MF/HF) | |
Time coherent coaxial (MF/HF) | |
| DRIVER BRAND | B&C |
LOW FREQUENCY TRANSDUCER | |
| POWER(AES2) | |
| SYSTEM CONTINUOUS POWER (W) | 700 |
| SYSTEM PROGRAMME POWER (W) | 1400 |
| SYSTEM PEAK POWER (W) | 2800 |
| CROSSOVER FREQUENCY (HZ) | 500 |
| RECOMMENDED HPF (HZ) = BW 18 DB/OCT. | 55 |
MID-HIGH FREQUENCY TRANSDUCER | |
| POWER(AES2) | |
| SYSTEM CONTINUOUS POWER (W) | 150 |
| SYSTEM PROGRAMME POWER (W) | 300 |
| SYSTEM PEAK POWER (W) | 600 |
| CROSSOVER FREQUENCY (HZ) | 500 |

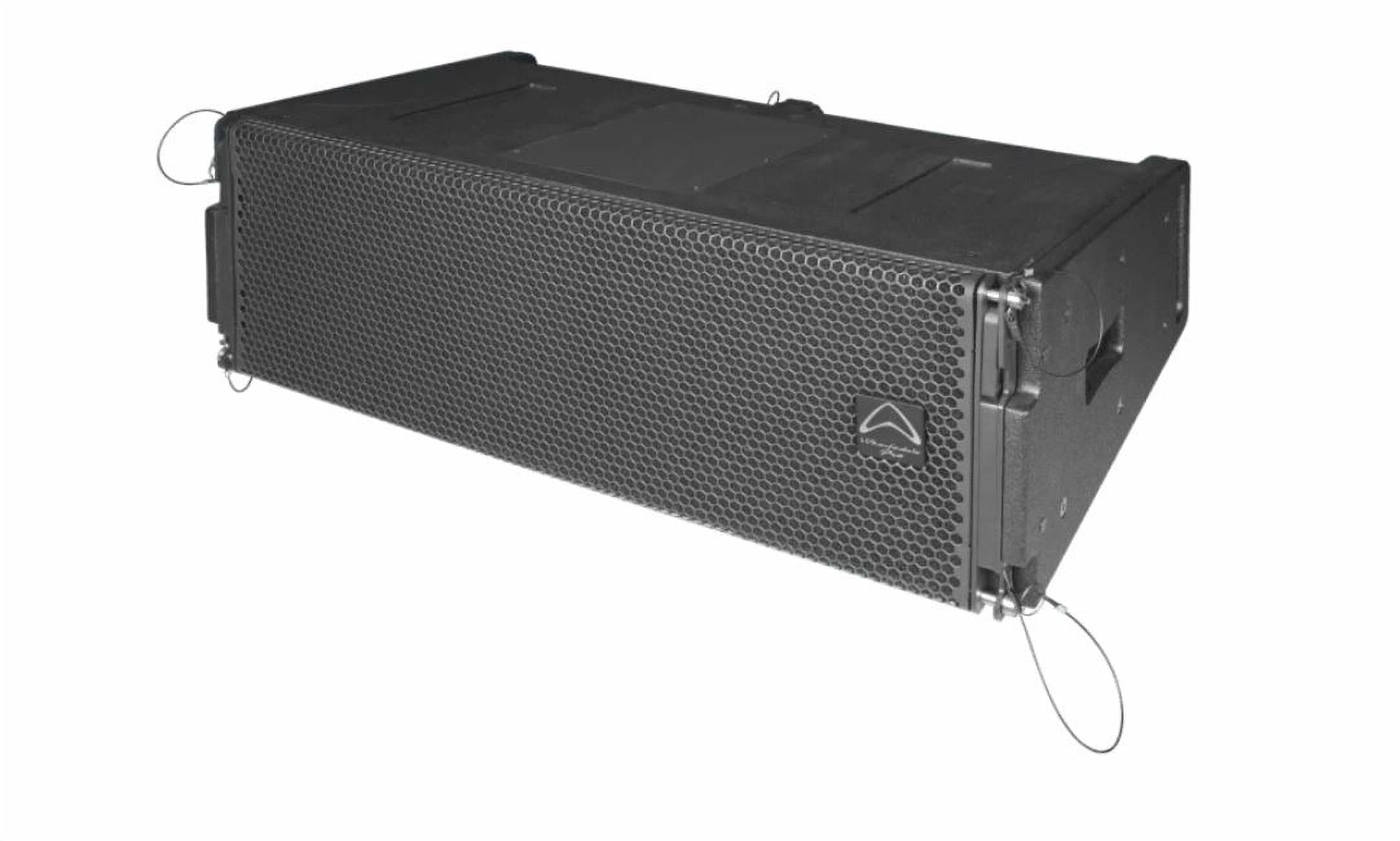

Wharfedale Pro XLA308 Line Array Speaker
7,250.00 د.إ.Price
