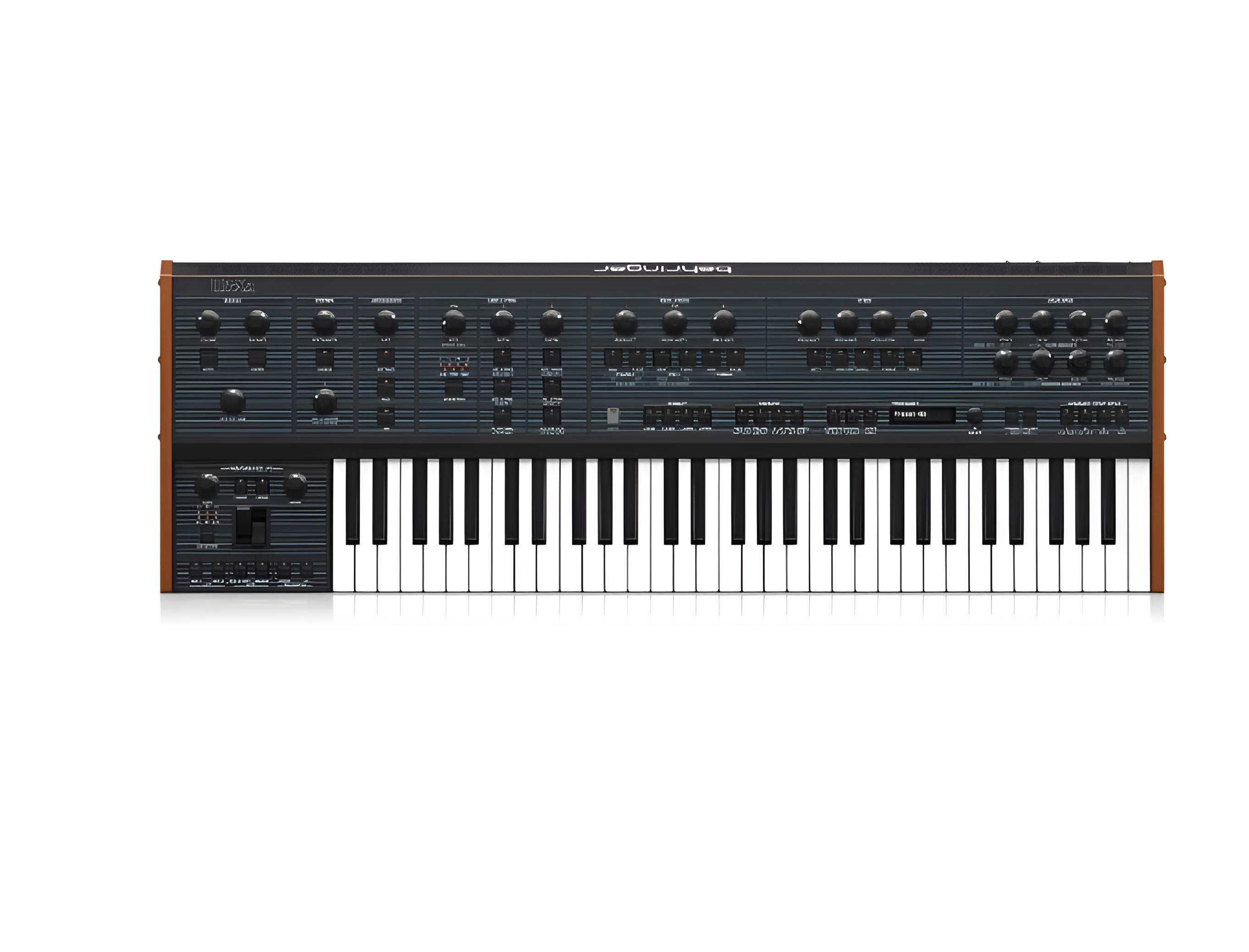

Specification-
Synthesizer Architecture
NUMBER OF VOICES
16-voice bi-timbral
TYPE
Analog
OSCILLATORS
32
LFO
2
VCF
1 low pass, 2-pole or 4-pole,
(12dB or 24dB/ oct slope), switchable
ENVELOPES
VCA, VCF
Connectivity
MIDI IN/OUT/THRU
5-pin DIN / 16 channels
USB (MIDI)
USB 2.0, type B
MAIN OUTPUT
2 x 1/4" TRS, balanced, max. 22 dBu
Impedance: 50 Ω
HEADPHONES
1/4" TRS, stereo, max 25mW dBu
Impedance: 25 Ω
FOOT PEDALS
Vibrato: 1/4" TRS, balanced
Filter: 1/4" TRS, balanced
FOOR SWITCHES
Sustain: 1/4" Mono
Program advance: 1/4" Mono
Hold: 1/4" Mono
USB
TYPE
Class-compliant USB 2.0, type B
SUPPORTED OPERATING SYSTEMS
Windows 7 or higher
Mac OS X 10.10 or higher
Manual Section
CONTROLS
Volume: 0 to 255
Balance
Master tune
SWITCHES
Auto
Chord
Control Section
CONTROLS
Portamento
OSC 2 Detune
SWITCHES
Unison
Arpeggiator Section
CONTROLS
Rate
SWITCHES
Settings
Hold
On
LFO Section
CONTROLS
LFO Rate
SWITCHES
Waveform
LED
Sine
Inverse Sawtooth
Square
Sawtooth
Sample & hold
Trig
SMP
Modulation Section
CONTROLS
OSC 1 depth
OSC 2 depth
SWITCHES
OSC 1 freq
OSC 2 freq
Filter freq
OSC 1 PWM
OSC 2 PWM
Volume mod
Oscillator Section
CONTROLS
Frequency 1
Pulse width
Frequency 2
SWITCHES
Saw waveform 1
Pulse waveform 1
Sync OSC 2
F-ENV (envelope follow) OSC 2
Saw waveform 2
Pulse waveform 2
Shift
Keyboard Section
SWITCHES
Split (keyboard)
Double (keyboard)
Lower (keyboard)
Upper (keyboard)
Sequencer Section
SWITCHES
Rest / tie
Record
Stop
Play / pause
Filter Section
CONTROLS
Frequency
Resonance
Modulation
Noise
SWITCHES
OSC 1
Half OSC 2
Full OSC 2
4 Pole
Track
Envelope Section
CONTROLS
Attack (envelope)
Decay (envelope)
Sustain (envelope)
Release (envelope)
Attack (filter)
Decay (filter)
Sustain (filter)
Release (filter)
Programmer Section
CONTROLS
Select encoder
SWITCHES
Compare
Manual
Write
Preset / value -
Preset / value +
DISPLAY
2 x line, 16-digit LCD display
Assignable Preset Recall Section
SWITCHES
1 / USB / MIDI
2 / Vel / aft
3 / Voice
4 / Mod
Keyboard and Controls
WHEELS
Pitch
Modulation
CONTROLS
Rate
Depth
SWITCHES
Waveform
OSC 1 mod
OSC 2 mod
OSC 2 only (bend)
Amount (bend)
Transpose down
Transpose up
LED
Triangle
Square
Sawtooth
Inverse Sawtooth
Random
Sample & hold
KEYBOARD
61 full-size keys with velocity and
polyphonic aftertouch
