KEY FEATURES
“MODDED OUT” BASS LINE SYNTHESIZER FEATURING THE MOST LEGENDARY MODIFICATIONS
PURE ANALOG SIGNAL PATH BASED ON LEGENDARY VCO, VCF AND VCA DESIGNS
SAWTOOTH AND SQUARE WAVEFORM VCO WITH TRANSISTOR WAVE-SHAPING CIRCUITRY
AMAZING 4-POLE LOW-PASS RESONANT FILTER WITH CUT-OFF, RESONANCE, ENVELOPE, DECAY AND ACCENT CONTROLS
EASY-TO-USE 16-STEP SEQUENCER WITH 7 TRACKS, EACH WITH 250 USER PATTERNS
FILTER FREQUENCY FULLY CONTROLLABLE VIA MIDI C/C
EARTH-SHATTERING SUB-HARMONICS OSCILLATOR WITH SWITCHABLE OUTPUT LEVEL
AUTHENTIC ANALOG SLIDE CIRCUITRY WITH EXTERNAL SLIDE CONTROL
SLIDE TIME CONTROL ALLOWS FOR VARIABLE SLIDE TIME (UP TO 6 TIMES LONGER)
SWEEP SPEED SWITCH FEATURES 3 ACCENT SPEED MODES (SLOW, NORM, FAST)
ACCENT SWEEP SWITCH FEATURES 3 SWEEP COMBINATIONS WITH HIGH RESONANCE MODE
FILTER FM CONTROL MODULATES FREQUENCY OF THE FILTER FROM THE AUDIO OUTPUT OF THE VCA
MUFFLER CIRCUITRY FEATURES POST VCA DISTORTION WITH FULL BASS RESPONSE
DEDICATED ACCENT PUSH BUTTON TO MANUALLY ACTIVATE THE ACCENT
SOFT ATTACK CONTROL FOR WIDE RANGE OF ATTACK TIMES FOR NON-ACCENTED NOTES
NORMAL CONTROL FOR WIDE RANGE OF DECAY TIME FOR NON-ACCENTED NOTES
ACCENT CONTROL FOR WIDE RANGE OF DECAY TIME FOR ACCENTED NOTES
FILTER TRACKING CONTROL FOR FILTER FREQUENCY TRACKING OF THE CURRENT NOTE
OVERDRIVE CONTROL ADDS INSANE SPICE AND EDGE TO YOUR SOUNDS
MASSIVE AMOUNT OF CV AND GATE IN/OUTS FOR EXTREME CREATIVITY
16-VOICE POLY CHAIN ALLOWS COMBINING MULTIPLE SYNTHESIZERS FOR UP TO 16-VOICE POLYPHONY
PREMIUM QUALITY VRS FEATURING HIGH RESOLUTION AND METAL SHAFTS FOR LONG LIFECYCLE
15 CONTROLS AND 33 SWITCHES TO GIVE YOU DIRECT AND REAL-TIME ACCESS TO ALL IMPORTANT PARAMETERS
MIDI AND USB IMPLEMENTATION WITH MIDI CHANNEL AND VOICE PRIORITY SELECTION
DESCRIPTION

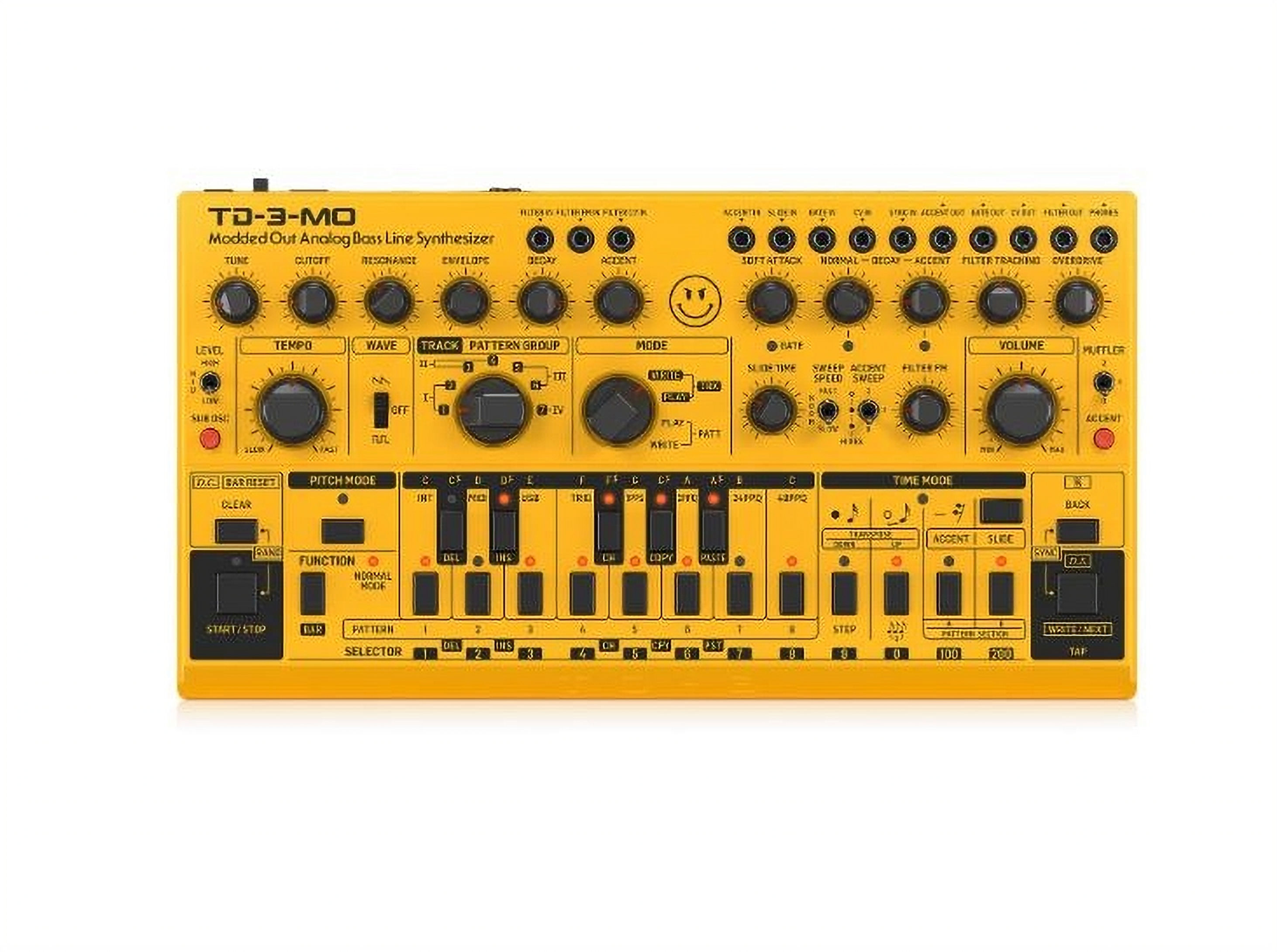

Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-AM, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more.
With its pure analog signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-AM is sure to become one of your favorite synthesizers.
SPECIFICATIONS
| Category | Specification |
|---|---|
| SYNTHESIZER ARCHITECTURE | |
| NUMBER OF VOICES | Monophonic |
| TYPE | Analog |
| OSCILLATORS | 1 |
| VCF | 1 Low Pass |
| ENVELOPES | 1 |
| CONNECTIVITY | |
| POWER INPUT | DC input connector |
| POWER SWITCH | Push button on/off |
| MIDI | MIDI In and Thru, 5-pin DIN |
| USB (MIDI) | USB 2.0, Type B |
| LINE OUTPUT | 1/4" TRS, unbalanced, max. +8 dBu |
| OUTPUT IMPEDANCE | 1.5 kΩ |
| HEADPHONES | |
| CONNECTOR | 3.5 mm TRS |
| OUTPUT POWER | Max. 50 mW @ 32 Ω (1 kHz, 1% THD) |
| OUTPUT IMPEDANCE | 15 Ω |
| USB | |
| TYPE | Class compliant USB 2.0, Type B |
| SUPPORTED OS | Windows 7 or higher, macOS X 10.6.8 or higher |
